To add on additional Extensions, RGB+W Pods, Strips, Dome Lights, Whips, Wheel Rings, RZR Fang, X3 Accent lights or any other RGB+W compatible plug and play item to your kit click here.


Extremely bright and extremely tough, our full 4 wheel portal kit is a great add on to an existing RGB+W system or run as a standalone system.  Strips can be trimmed to correct length or doubled around the portal for additional light.  Our kit includes 4 sets of 4ft strips, one for each wheel.  It also includes everything needed to install like splitters, extensions, spare end caps, silicon, adhesive prep, etc...



Encased in a ultra heavy duty flexible casing with a backed by a 3m VHB utlra heavy duty tape they will handle anything you can throw at these.  If you do damage one its covered by the best warranty on the market?  25 yr you break it we replace it un-voidable warranty.  Don't be fooled by other "Limited" lifetime warranties, companies that don't list their warranty policy or ones that have huge lists of exclusions.



Our all new RGB+W Bluetooth & RF Controller allows dual control from a bluetooth app or a back up handheld remote.  Controller also includes brake override option which will turn the kit on and to red if it is wired to your positive brake wire as well as a white override function that can be used to turn the kit white.



We offer two ways to control these lights:

No Controller: Add to RGB+W 5 Pin Rock Light System: Plugs directly into our exisitng RGB+W rock light kit and run them together.  Includes needed wiring.



Include Dedicated Controller: This option allows you to run whips independently, if your not running our rock light system or do not want them directly linked to your rock lights.



*Rock light kit not included & you must order dedicated controller if your not currently running/ordering our rock light system*

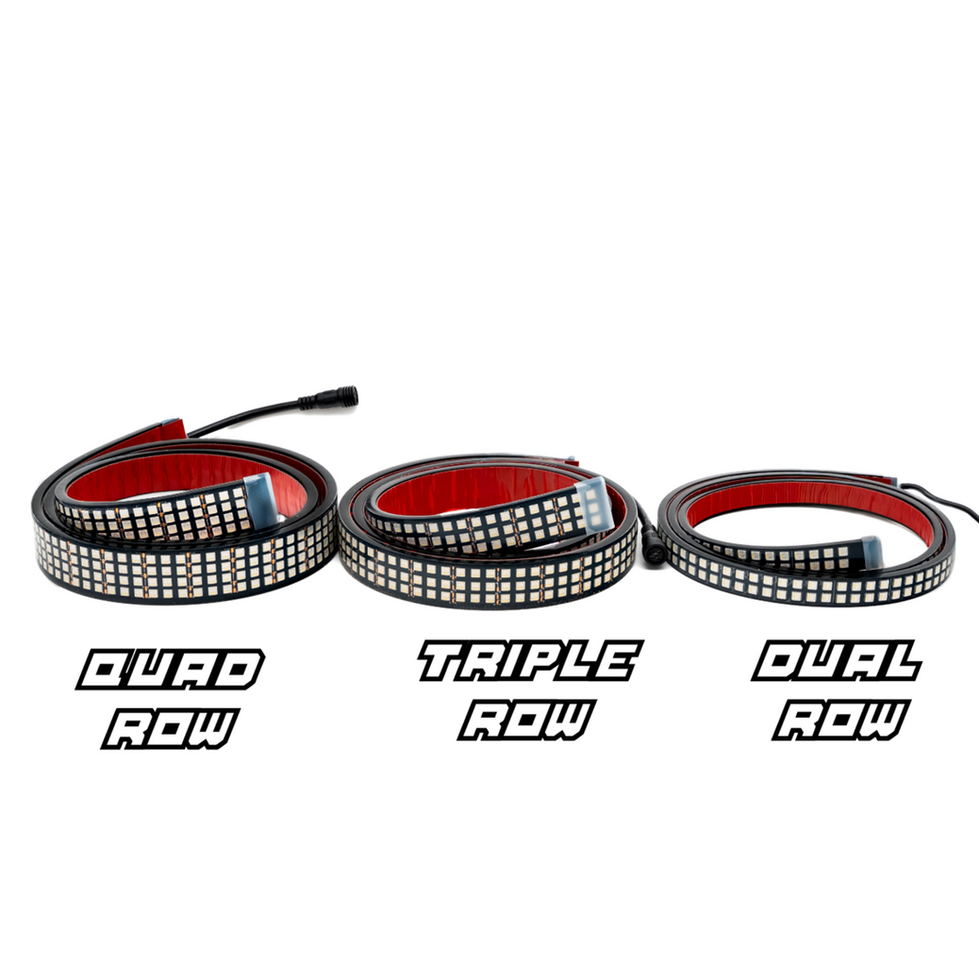

(RGB+W) Dual Row Portal Strip Light Kit

$300.00Price
  • DOWNLOAD INSTRUCTIONS & DIAGRAM

    Click APPLE or ANDROID to Download the app

  • Requires phone to use BT control via BLEDIM app.  Also includes extra RF remote, remote does not require line of sight it is paired with the controller.

    BLUETOOTH APP CONNECTION:

    • Download app ?BLEDIM? in the app store.
    • DO NOT connect to the device in your phone settings menu
    • Once connected you can adjust/create colors and patterns as well as turn on and off, the controller should retain the last used setting when powered off then back on.

    RF HANDHELD REMOTE PAIR OR LOCK REMOTE: To pair the remote if connection lost or lock it so other remotes cannot control.

    • Hold green power button.
    • Remove fuse from controller for 5 seconds, place back in.
    • Continue to hold green power button for 3 seconds

    BRAKE/RED OVER RIDE: Connect blue wire to brake power wire, this will turn on red even if the lights are turned off and will override any current color if already on, we suggest placing on its own switch to only activate when you want it to.

    COURTESY WHITE OVER RIDE: Connect white wire to switch or cortesy lights, this will turn on white even if the lights are turned off and will override any current color if already on.

    *Additional instuctions can be downloaded*
