RGB+W Controller Module - 5 PIN
Quantity
STANDARD CONTROLLER - DOWNLOAD INST. & APP
MULTIZONE CONTROLLER - DOWNLOAD INST. & APP

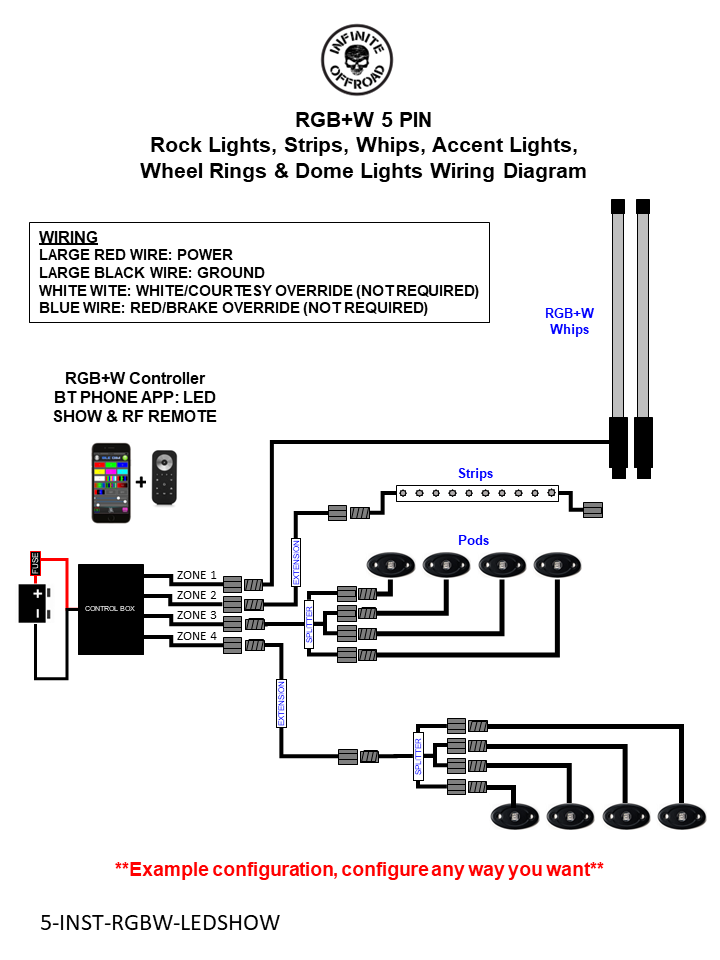

CONTROLLER DETAILS
Requires phone to use BT control via app. Also includes extra RF remote, remote does not require line of sight it is paired with the controller.
BRAKE/RED OVER RIDE: Connect blue wire to brake power wire, this will turn on red even if the lights are turned off and will override any current color if already on, we suggest placing on its own switch to only activate when you want it to.
COURTESY WHITE OVER RIDE: Connect white wire to switch or cortesy lights, this will turn on white even if the lights are turned off and will override any current color if already on.
TURN SIGNAL OPTION: Turn signal controller offers left and right turn signal activation wire, when either wire receives 12v power it will blink amber and the oposite zone will turn white.
*Additional instuctions can be downloaded*
