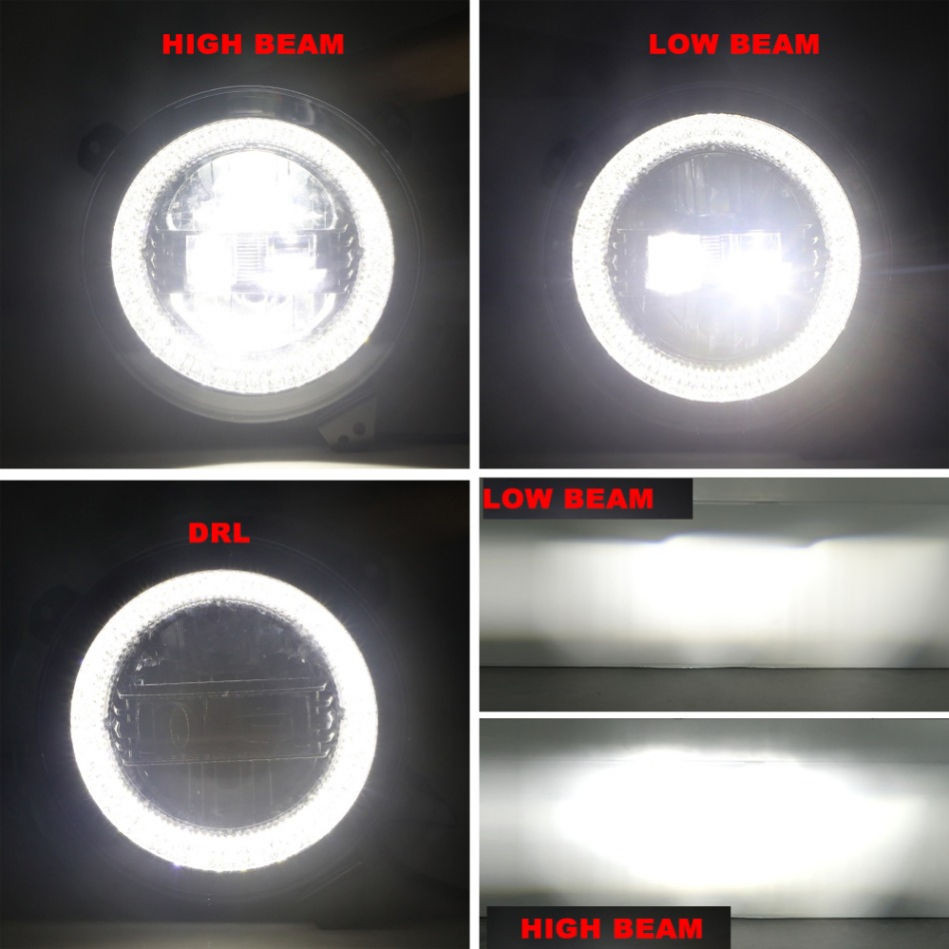

(Jeep JL JT) Bundle 9" Headlight & Fog RGB+W

DRL/TURN WIRING COLORS:

YELLOW: TURN SIGNAL WIRE

GREEN: DRL

RGB+W HALO WIRING INSTRUCTIONS CLICK TO DOWNLOAD

DRL & TURN SIGNAL WIRING INSTRUCTIONS CLICK TO DOWNLOAD


CLICK FOR RGBW INSTALL VIDEO

CLICK FOR WHITE HALO INSTALL VIDEO

MOUNT TYPE: PLEASE VERIFY MOUNTING POINTS AS THERE CAN BE SOME VARIATION TO THE BELOW

• 2 POINT -
  • JT - Rubicon models with steel bumper w/ removable ends
  • JL - Rubicon/392 models with steel bumper w/ removable ends

• 3 POINT
  • JT - Sport, Sport S, Altitude
  • JL - Sport, Sport S, Sport Altitude

• 4 POINT -
  • JT - Willys Sport, Willys, Overland, Rubicon, Mojave, High Altitude with plastic bumper
  • JL - Willys Sport, Willys, Sahara, Sahara Altitude, High Tide, High Altitude, Rubicon with plastic bumper
