To add on additional Extensions, RGB+W Pods, Strips, Dome Lights, Whips or any other RGB+W compatible plug and play item to your kit click here.



Our wheel rings are manufactured with high quality frames & heavy duty encased RGB+W high output LED strips.  They also now include double the LED's than our previous versoin and most competitors.  These install by bolting to the dust shield mounted on the brake caliper of your car, truck, SUV or Jeep.  (Not designed for UTV's or 4 Wheelers).



Our products are covered by the best warranty in the business. 25 yr if you can break it we replace it warranty (includes accidental damage).  Our all new RGB+W wheel rings were the first plug and play RGB+W wheel rings on the market which can be added to your rock light kit by simply plugging it into the controller.  Makes installation a breeze and saves cost on a separate controller.  Our plug and play kit includes a screw style waterproof connectors and control boxes, no cheap connections that don't stay together or break.



Our all new RGB+W Bluetooth & RF Controller allows dual control from a bluetooth app or a back up handheld remote.  Controller also includes brake override option which will turn the kit on and to red if it is wired to your positive brake wire as well as a white override function that can be used to turn the kit white with a dome switch or courtesy light.



2 Sizes/Types:

1 - 15" Outside LED strip (20" & larger wheels)

2 - 17" Outside & Inside LED strip (22" & larger wheel, 2500/3500 trucks)


2 Options To Control:

1 - Add to 5 pin system: No Controller

This option allows you to plug in your wheel rings directly into your current RGB+W rock light kit and run them both off one controller.  The wheel rings cannot be controlled independently.

2 - Include Dedicated Controller: w/ Option to link to rock controller.

This option allows you to run a secondary controller and control the wheel rings independtly by them selves as a stand alone system or link the controller with the rock light controller and control them together.

*If you are not running our RGB+W rock lights you will need to choose this option as a controller is required to power and change the colors.*

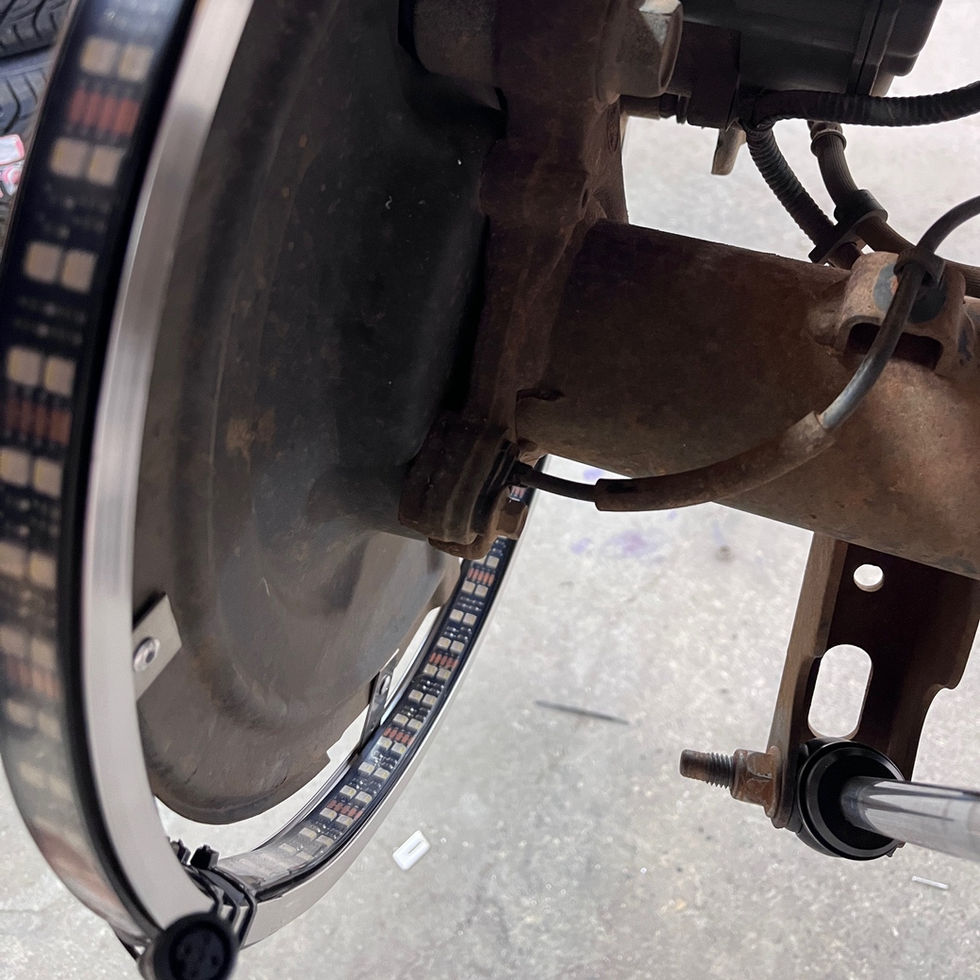

*Each installation is slightly different.  Installation is completed by self tapping or bolting the brackets to the dust shield or other



SPECS:

-DOUBLE THE LED'S COMPETITORS USE

-NEW BLUETOOTH & w/ BACK UP RF REMOTE

-25YR WARRANTY (INCLUDES ACCIDENTAL)

-PLUG AND PLAY WIRING EASILY ADD ON

-WATERPROOF & WATERTIGHT CONNECTIONS

-INTERNALLY SEALED WATERPROOF CONTROLLER

(RGB+W) LED Wheel Rings Set

$220.00Price
  • DOWNLOAD INSTRUCTIONS & DIAGRAM

    Click APPLE or ANDROID to Download the LED BLE application

  • Requires phone to use BT control via BLEDIM app.  Also includes extra RF remote, remote does not require line of sight it is paired with the controller.

    BLUETOOTH APP CONNECTION:

    • Download app “BLEDIM” in the app store.
    • DO NOT connect to the device in your phone settings menu
    • Once connected you can adjust/create colors and patterns as well as turn on and off, the controller should retain the last used setting when powered off then back on.

    RF HANDHELD REMOTE PAIR OR LOCK REMOTE: To pair the remote if connection lost or lock it so other remotes cannot control.

    • Hold green power button.
    • Remove fuse from controller for 5 seconds, place back in.
    • Continue to hold green power button for 3 seconds

    BRAKE/RED OVER RIDE: Connect blue wire to brake power wire, this will turn on red even if the lights are turned off and will override any current color if already on, we suggest placing on its own switch to only activate when you want it to.

    COURTESY WHITE OVER RIDE: Connect white wire to switch or cortesy lights, this will turn on white even if the lights are turned off and will override any current color if already on.

    *Additional instuctions can be downloaded*
